Flexible Brake Lining Roll Friction Roll for Windlass Tractors Hoist Capstan Lift

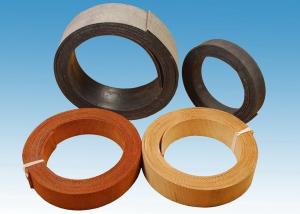

Brake Lining Roll is made of friction material, brass wire and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other applications. Its coefficient of friction has a high capacity to absorb loads by impact and excellent resistance to mechanical stress.
Material: brass wire, glass fiber, viscose fiber and resin, etc
Wear Performance:
|
Interface Temperature
|
Friction coefficient
|
Wear rate(CM3/NM)
|
|
100°C
|
0.40—0.65
|
≤0.7×10-7
|
|
150°C
|
0.35—0.65
|
≤1.1×10-7
|
|
200°C
|
0.30—0.60
|
≤1.3×10-7
|
Work condition: 200°C, Pressure: 1.0 mpa
Features:
Good flexibility, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, excellent oil resistance and water resistance, etc.
We can manufacture the flexibility, hardness, width, thickness length and material as per your request.
Applications:
It's widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Tractors, Winch, Windlass, Motorcycles, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.
Services:
1. Free Samples
Free samples within 1-10 KGs, but the delivery fee should be paid by your side.
2. Certificates
We can supply Test Report, Place of Original (CO, Form A, Form E, etc.), SGS test, etc.
3. Strict Quality Control
Our strictly Quality Control department will inspect each batch of goods before loading, only after the goods qualified, it can be allowed to out of the factory.
4. Professional Document Service
After shipped, our professional document department will serve you all the documents for you timely.
FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: Can you make different sizes and colors?
A: Yes. The sizes and colors can be customised, we can make it according to your samples.
Q: Can you offer sample to test?
A: Yes, we can offer free sample, customer only need to pay the shipping charge.
Q: What's your acceptable payment term?
A: Our usual payment term is L/C, T/T, Western Union.
Q: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.
We have more than 10 years experience in manufacturing Brake Lining in Roll, which can bring mutual benefit and profits to you and us.
